Introduction Get a free quote

Cold drawing machine

The cold drawing machine is mainly used for drawing ferrous and non-ferrous metal materials (pipes and bars) at normal temperature. The blank pipe (rod) becomes the finished pipe (rod) with the desired shape, diameter, precision and high mechanical properties strongly stretched by the machine. There are many types of cold drawing machines, which mainly are categorized as two types according to the different types of transmission, namely chain type cold drawing machine and hydraulic cold drawing machine.



Chain type cold drawing machine

The chain type cold drawing machine refers to that the drawing car is driven by a sprocket chain system, which has two main types, single-chained and double- chained.



Double- chained cold drawing machine

Performance specification

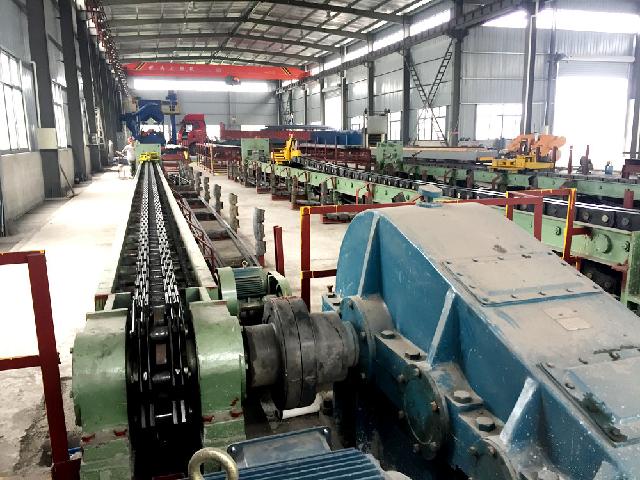

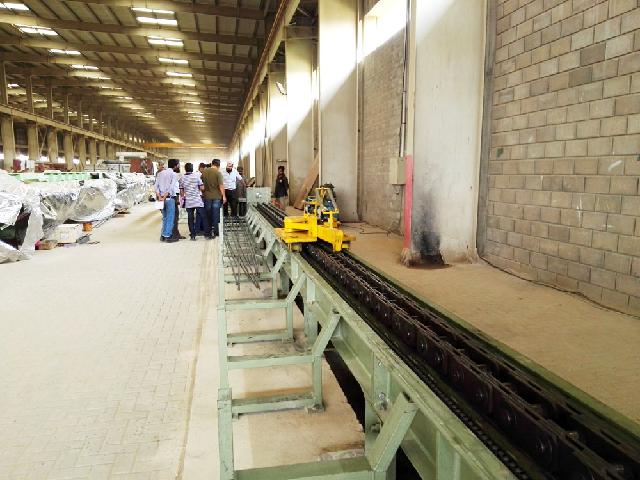

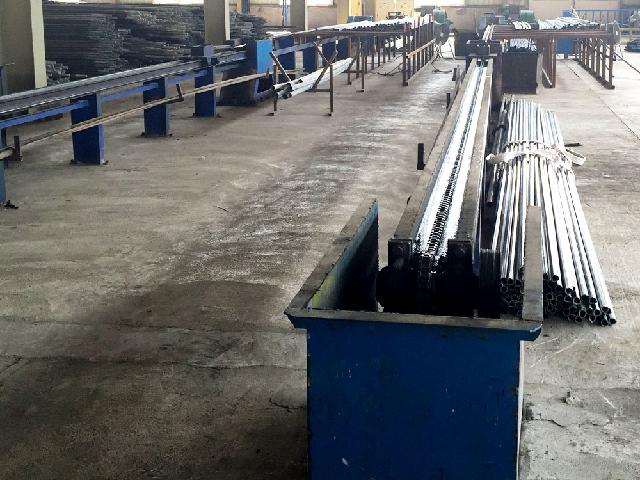

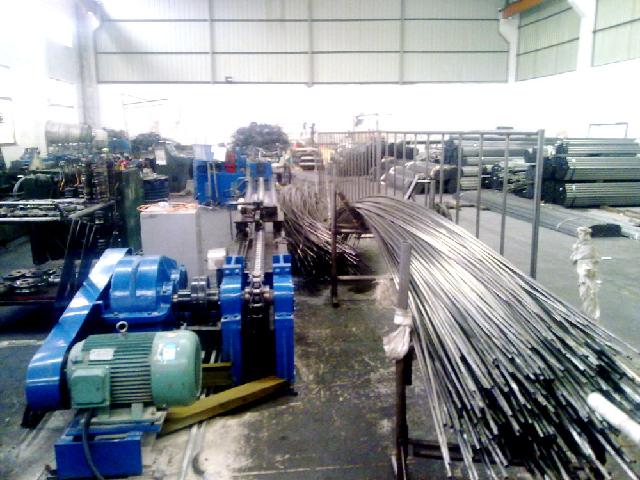

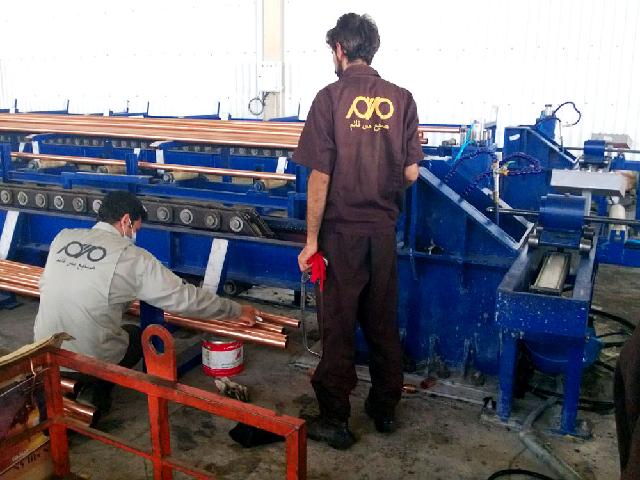

The main transmission of the double-chained cold drawing machine drives two chains at the same time, and the two chains are on the same machine body, which together drive a drawing car to work. The drawing car is fixed with the chain, and moves forward and backward driven by the chains’ continuous reciprocates.

Due to the different structure, the double-chained cold drawing machine has obvious advantages compared with the single-chained cold drawing machine: ① high level of mechanization and automation for loading, unloading and receiving, shortening the auxiliary operation time and drawing paces, reducing the operator’s labor intensity; ②The drawing center line and the chain tension line basically coincide, and the drawing process is stable, which is beneficial to ensure the quality of the finished product, increasing the drawing speed and reducing the working noise.; ③ Chain size is small which is easy for manufacturing and maintenance.

From the development experience of cold drawing industry in developed countries, the double-chain cold drawing machine replaces the single-chain cold drawing machine is the inevitable trend.

The implementation standard of double-chain single-machine cold drawing machine produced by our factory is: JB/T 2298-2001

Basic Technical Parameter

Serial No.
Model
Rated drawing
force

kN
Rated drawing
speed

m/min
Speed range
of drawing

m/min
Return speed
of car

m/min
Max Drawing Diameter
Drawing
Length

m
Drawing
Number
Main Motor
Power

kw
Ferrous
mm
Non-ferrous
mm
1
SLBJ-0.5
5
40
3-80
80
5
8
16
1-3
4.5
2
SLBJ-1
10
40
3-80
80
10
15
16
1-3
9
3
SLBJ-3
30
40
3-80
80
15
20
16
1-3
30
4
SLBJ-5
50
40
3-80
80
20/16
30/25
16
1-3
45
5
SLBJ-10
100
60
3-100
100
40/25
55/35
16
1-3
126
6
SLBJ-20
200
60
3-100
100
60/50
80/65
16
1-3
250
7
SLBJ-30
300
60
3-100
100
89/65
130/80
16
1-3
360
8
SLBJ-50
500
60
3-100
100
127/90
150/110
16
1-3
630
9
SLBJ-75
750
40
3-60
60
146
175
16
1
630
10
SLBJ-100
1000
30
3-60
60
168
200
16
1
630
11
SLBJ-150
1500
30
3-60
50
180
300
16
1
2×470
12
SLBJ-200
2000
20
3-40
40
219
400
16
1
2×420
13
SLBJ-300
3000
20
3-40
40
273
500
16
1
2×630
