Introduction Get a free quote

Cold drawing machine

The cold drawing machine is mainly used for drawing ferrous and non-ferrous metal materials (pipes and bars) at normal temperature. The blank pipe (rod) becomes the finished pipe (rod) with the desired shape, diameter, precision and high mechanical properties strongly stretched by the machine. There are many types of cold drawing machines, which mainly are categorized as two types according to the different types of transmission, namely chain type cold drawing machine and hydraulic cold drawing machine.



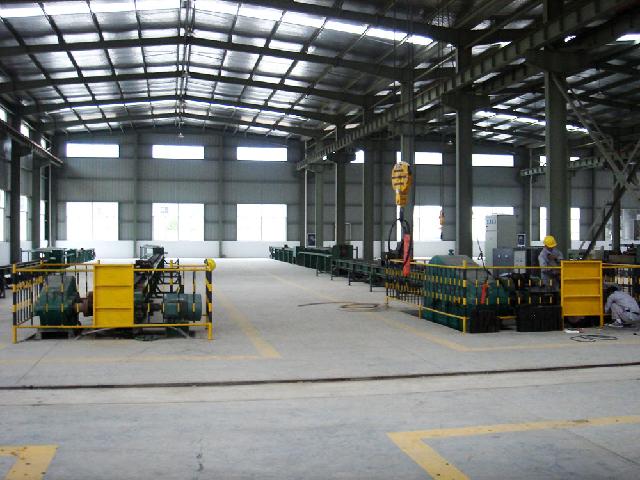

Chain type cold drawing machine

The chain type cold drawing machine refers to that the drawing car is driven by a sprocket chain system, which has two main types, single-chained and double- chained.

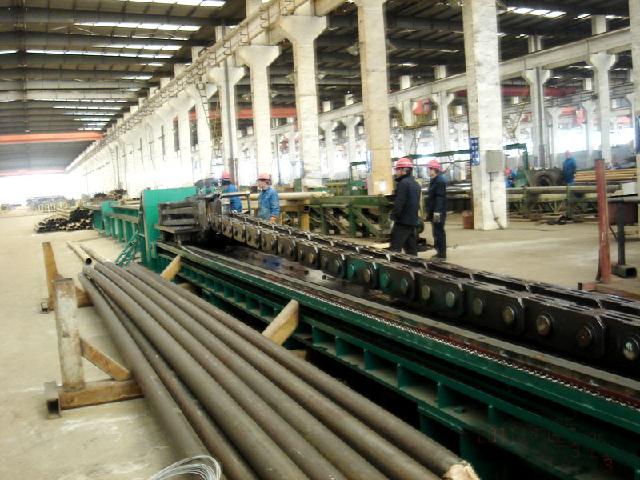

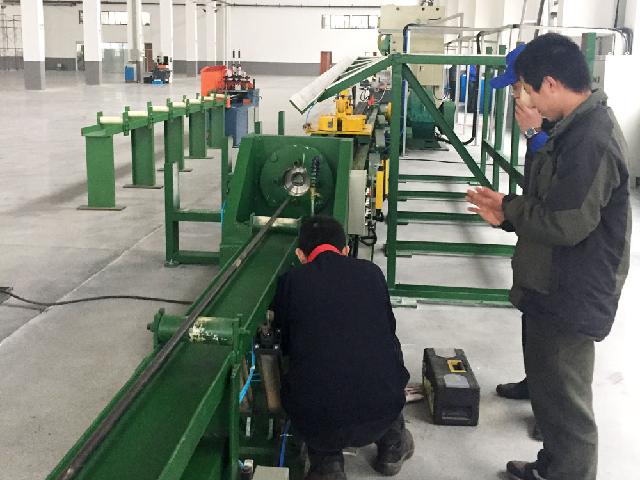

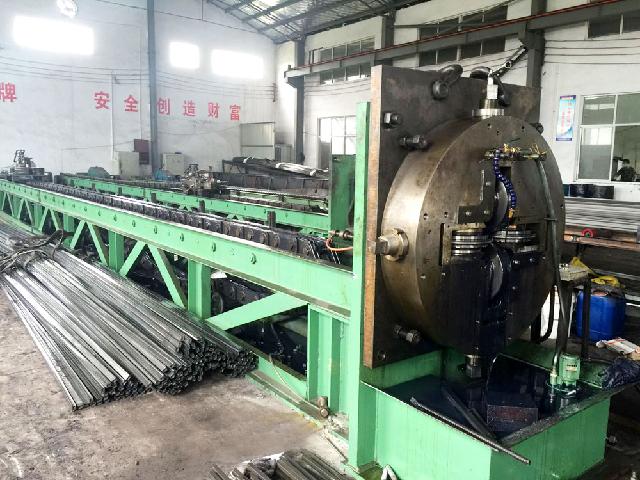

Single- chained cold drawing machine

Performance specification

The main transmission of the single-chained drawing machine pulls the drawing car to work by only one chain. Presently, this kind of machine has been widely applied in the domestic cold drawing industry due to its simple structure and low manufacturing and using cost, but its main disadvantages are: low level of mechanization and automation, high working noise, and great labor intensity for operators.

Basic Technical Parameter

Serial No.
Model
Rated drawing
force

kN
Rated drawing
speed

m/min
Speed range of
drawing

m/min
Return speed
of car

m/min
Max Drawing Diameter
Drawing Length
m
Main Motor
Power

kw
Ferrous
mm
Non-ferrous
mm
1
LBJ-D5
50
17
4-40
80
20/16
30/25
9
18.5
2
LBJ-D10
100
17
4-40
80
40/25
55/35
9
37
3
LBJ-D15
150
14
4-30
80
50/35
60/50
9
45
4
LBJ-D20
200
13
4-30
60
60/50
80/65
9
55
5
LBJ-D30
300
12
1-30
60
90/65
130/80
9
75
6
LBJ-D45
450
9/11
1-20
60
100/70
140/100
9
90/110
7
LBJ-D60
600
8/10
1-20
60
120/80
150/110
9
110/132
8
LBJ-D75
750
8/10
1-20
60
150/90
175/120
9
132/160
9
LBJ-D100
1000
7/9
1-16
40
170/100
200/140
9
160/200
10
LBJ-D120
1200
8
1-16
40
175
250
9
200
11
LBJ-D150
1500
8
1-16
40
180
300
9
250
12
LBJ-D200
2000
8
1-16
40
220
400
9
315
13
LBJ-D250
2500
7
1-16
40
280
450
9
360
14
LBJ-D300
3000
7
1-16
40
350
500
9
450
