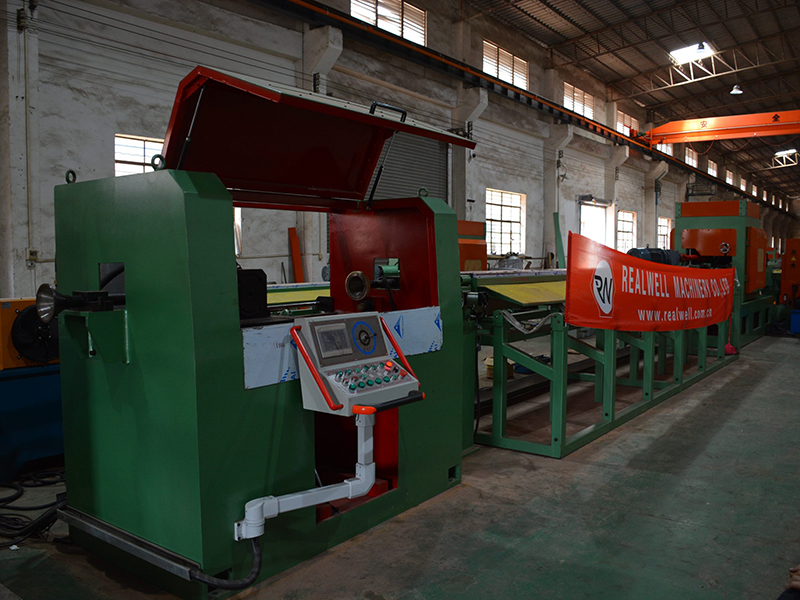

The combined drawing unit is special equipment for producing cold-drawn bars with different shapes and specifications. It is a combined unit that integrates the processes of uncoiling, initial straightening,drawing and fine straightening, cutting to length, polishing and collection of finished products.
LBJZ continuous drawing unit is high precision and high efficiency professional processing equipment of metal rod and pipe. The unit has functions of uncoiling, initial straightening, stretching, fine straightening, cutting to length, feeding, polishing and finished products collection etc. It integrates multiple processes and can process a variety of special-shaped materials, such as hexagonal, square, flat square and round shapes as well as other varieties of profiles.
LHJZ-20
1. Maximum pulling force: 200kn
2. Rated drawing speed: 5-35 m/min continuously viable
3. Processing materials and diameter: 45#Steel Round Material ∅15mm-∅36mm
4. Processing length: 2-6m (±5mm)
5. Finished product surface roughness: Ra0.4um- Ra 0.8um
6. Finished product straightness: bars≤0.3mm/m
7. Product outer diameter tolerance: ±0.01mm
8. Total unit power: 330 KW
9. Main motor power: 200KW
10. Main power: Three-phase 380V/ 50 HZ
11. Air Pressure: 6kg/cm2 ±1kg/ cm2
12. Approximate total weight of unit: 68T
Equipment Configuration

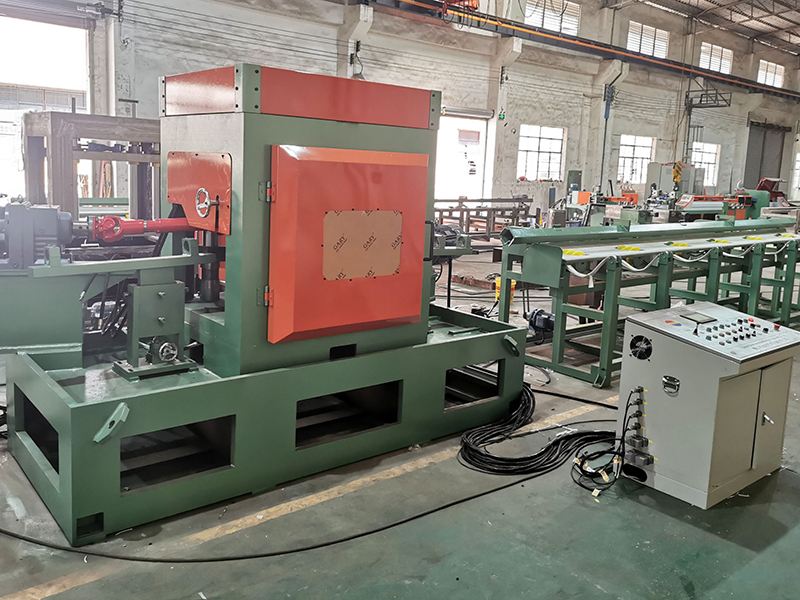

A1. Control cabinet
A2.Pay off rack + Opening machine
A3. Main drawing machine

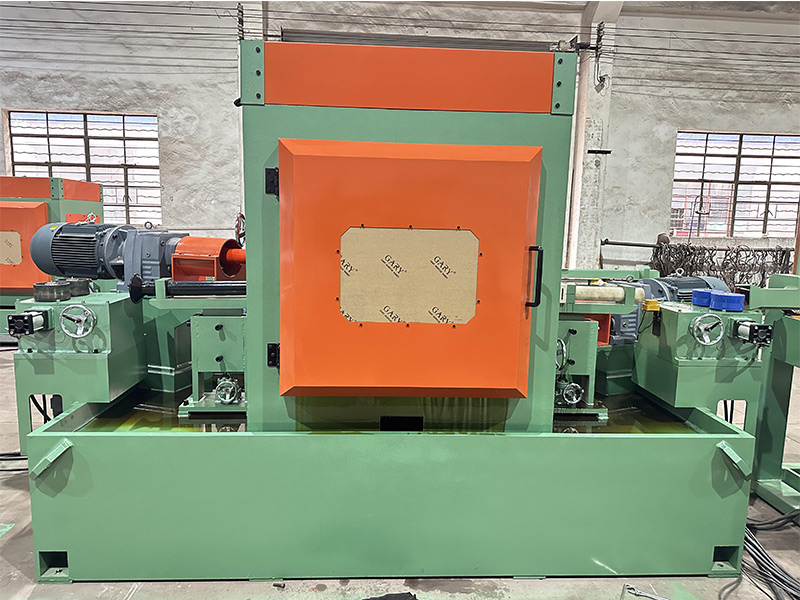

A4. Fine straightening system
A5. Hydraulic shearing machine

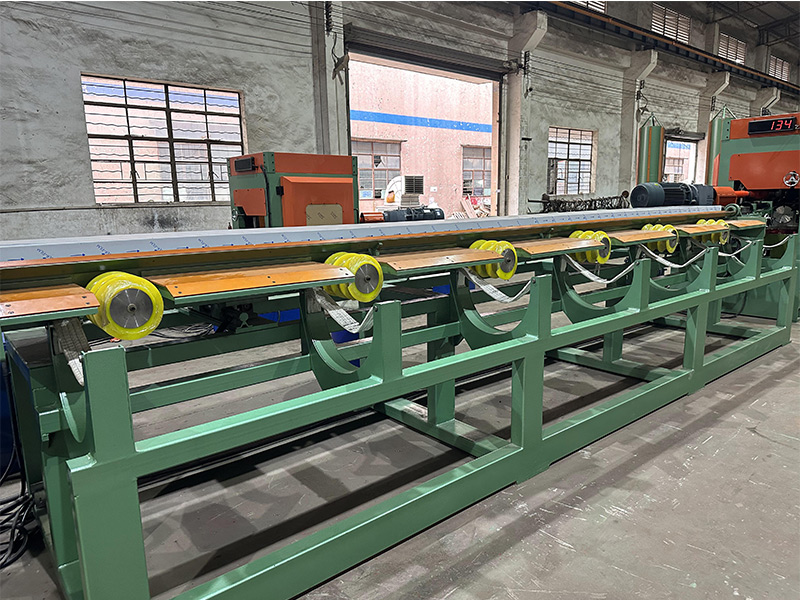

A6. Guiding rack
A7. Vertical two-roller machine, collecting device
