The combined drawing unit is special equipment for producing cold-drawn bars with different shapes and specifications. It is a combined unit that integrates the processes of uncoiling, initial straightening,drawing and fine straightening, cutting to length, polishing and collection of finished products.

LBJZ continuous drawing unit is high precision and high efficiency professional processing equipment of metal rod and pipe. The unit has functions of uncoiling, initial straightening, stretching, fine straightening, cutting to length, feeding, polishing and finished products collection etc. It integrates multiple processes and can process a variety of special-shaped materials, such as hexagonal, square, flat square and round shapes as well as other varieties of profiles.

LHJZ-2

Maximum pulling force: 20kn

Rated drawing speed: 5-60 m/min step-less speed regulation

Processing materials and diameter: 45#Steel Round Material ∅4mm-∅8mm

Processing length: 2-6m (±5mm)

Finished product surface roughness: Ra0.4um- Ra1.6um

Finished product straightness: bars≤0.8mm/m

Product outer diameter tolerance: ±0.01mm

Total unit power: 70 KW

Main motor power: 37KW

Main power: Three-phase 380V/ 50 HZ

Air pressure: 6kg/cm2 ±1kg/ cm2

Approximate total weight of unit: 15T

Equipment Configuration

A1.Control cabinet

A2.Pay off rack, initial straightening machine

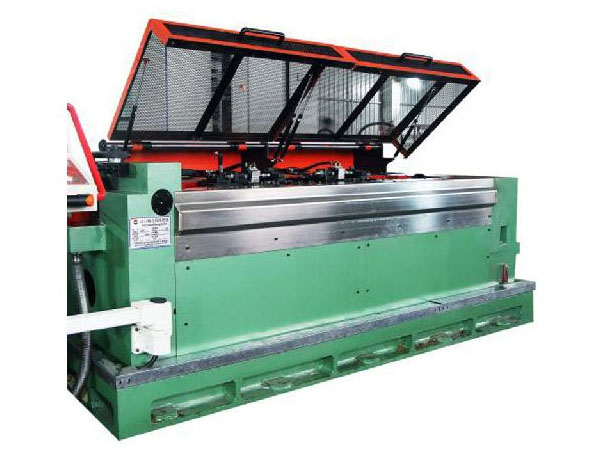

A3.Main drawing machine

A4.Fine straightening system

A5.Hydraulic shearing machine

A6.Guiding rack

A7.Polishing unit, collecting device
