Wet Polishing machine

I Technical Parameters of HF-ZD12G-D Polishing Machine

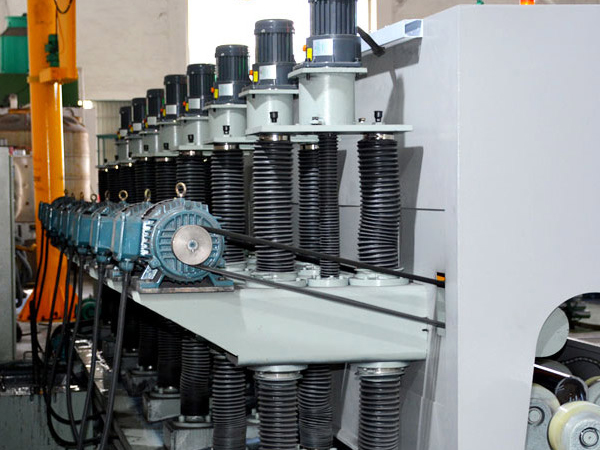

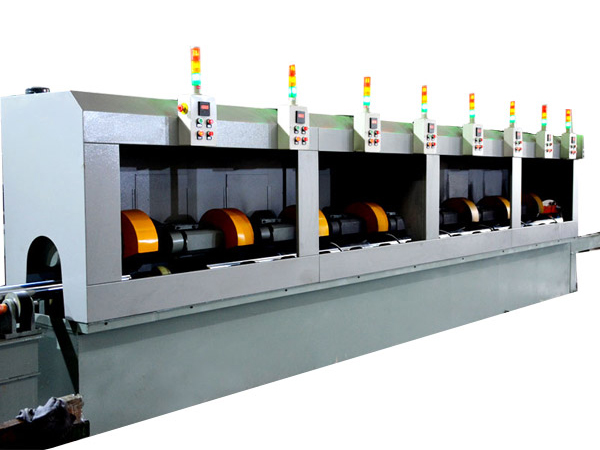

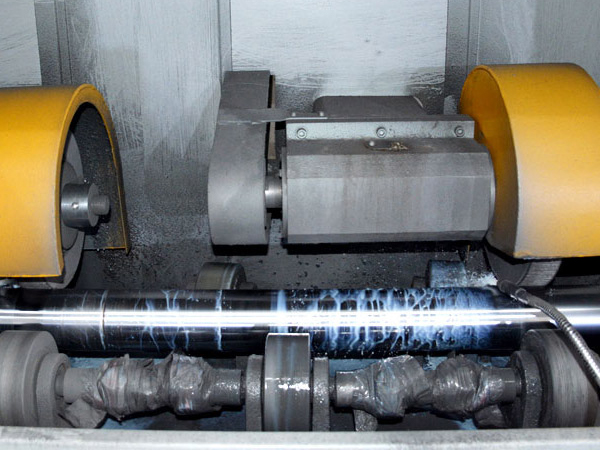

This machine mainly consists of five parts: the polishing machine, the guiding wheel rack, the main rack, the cooling system and the guiding wheel. The guiding wheel adopts the frequency conversion step-less speed control in running and the feed amount can be arbitrarily selected according to the needs of the work-piece, so as to achieve the effect you need. Various models have been formed into series, that is, the specifications and models selected by the user do not need to adjust the wheel spacing within a certain range. You only need to put the machining parts on the guiding rack and adjust the feeding amount of the polishing wheel to directly polish. The operation is very convenient, and the multi-stage polishing is completed at once.

II Efficiency of HF-ZD12G-D Polishing Machine

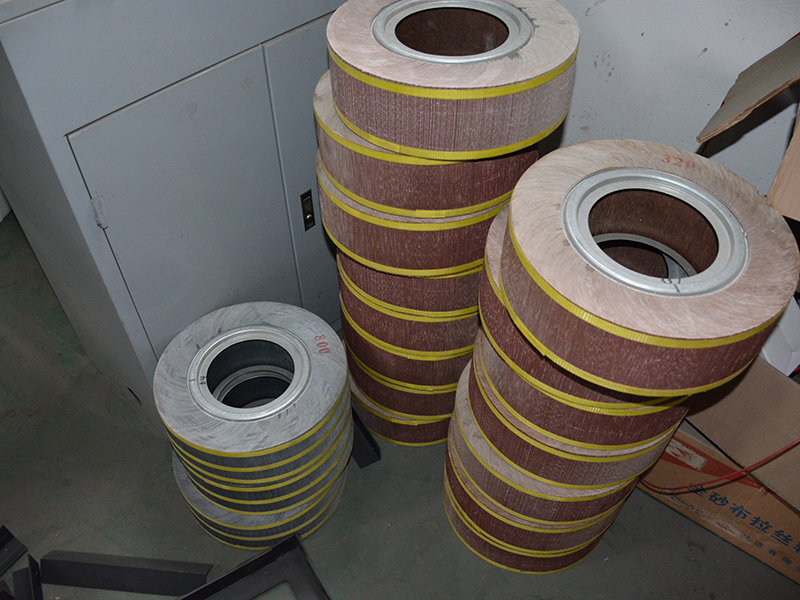

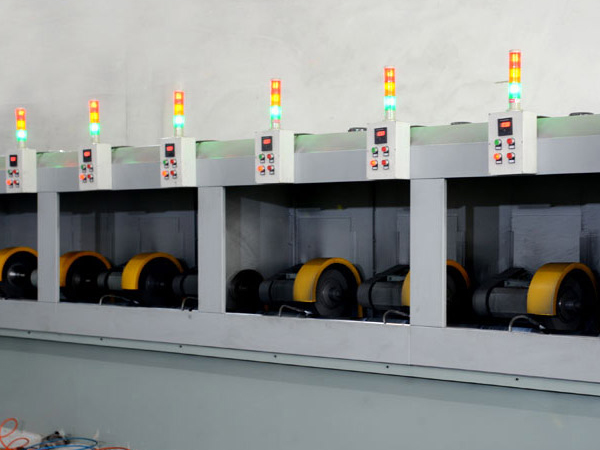

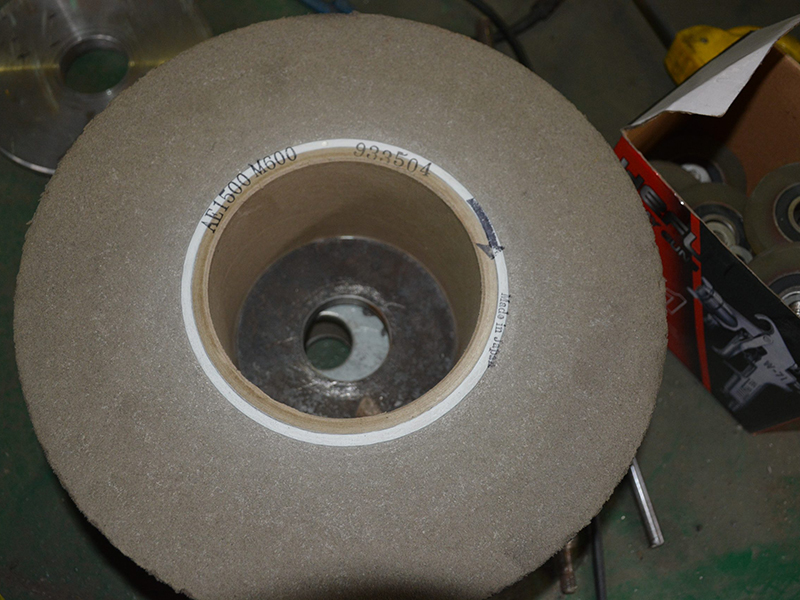

This machine adopts rough, medium and fine polishing wheels to reach the ideal polishing effect at once in a step-by-step manner. In case of quantities of work-pieces, the automatic loading and unloading devices can be used.

III Main Technical Parameters of HF-ZD12G-D Polishing Machine in

(1)Work-piece Speed 300~2000mm/min

(2)Surface Roughness Ra0.06~0.4μm

(3) Ovality “0”0.05mm

(4) Straightness “ ”0.05~0.01mm/m

IV.Processing Range
