The WXC series centreless lathes (peeling machine) are special high-efficiency lathes for roughing and finishing the outer circumference of round bars/ pipes and wire rods. It removes decarburized layers, cracks and other crackers on the surface of the bars quickly and with high precision.

The models in the parameter table can be made into common types (Type B, Type C), small (CA) type and numerical control (S) type.

Model
Input Dia
Length
Feeding Speed
Cutting Depth
Surface Roughness
Dia.Tolerance
Spindle Motor
Total Capacity
WXC20
ф5-ф20mm
≥1400mm
1-25m/min
0.5-2mm
Ra≤3.2
IT9
22KW
30KW
WXC40
ф5.5-ф40mm
≥1400mm
1-15m/min
0.5-2mm
Ra≤3.2
IT9
45KW
63KW
WXC60
ф13-ф75mm
≥2000mm
1-15m/min
0.5-2mm
Ra≤3.2
IT9
45KW
63KW
WXC80
ф16-ф85mm
≥2200mm
1-12m/min
0.5-3mm
Ra≤3.2
IT9
55KW/75KW
75KW/90KW
WXC100
ф25-ф110mm
≥2800mm
0.5-10m/min
1-4mm
Ra≤3.2
IT9
75KW
95KW
WXC130
ф35-ф135mm
≥3000mm
0.3-6m/min
1-5mm
Ra≤3.2
IT9
90KW
120KW
WXC160
ф45-ф170mm
≥3500mm
0.3-5m/min
1-5mm
Ra≤3.2
IT9
110KW
140KW
WXC200
ф70-ф210mm
≥4000mm
0.3-4m/min
1-5mm
Ra≤3.2
IT9
132KW
165KW
WXC250
ф95-ф260mm
≥4000mm
0.2-2.5m/min
1-5mm
Ra≤3.2
IT9
160KW
210KW
WXC350
ф150-ф360mm
≥4500mm
0.1-2m/min
1-10mm
Ra≤3.2
IT9
200KW
265KW
WXC400
ф205-ф410mm
≥4800mm
0.1-2m/min
1-10mm
Ra≤3.2
IT9
250KW
345KW
WXC500
ф315-ф510mm
≥5000mm
0.1-1.5m/min
1-10mm
Ra≤3.2
IT9
315KW
415KW

Strengths & Merits

1. It can process extra long rods, pipes and wires, including coil to coil, and coil to bars.

2. High efficiency: multiple blades simultaneously operate: its work efficiency is several times higher than conventional lathe.

3. High precision: diameter tolerance of finished products ≤h9, surface roughness ≤6.3 μm

4. Non-pollution: disposals can be recycled.

An introduction to composite members

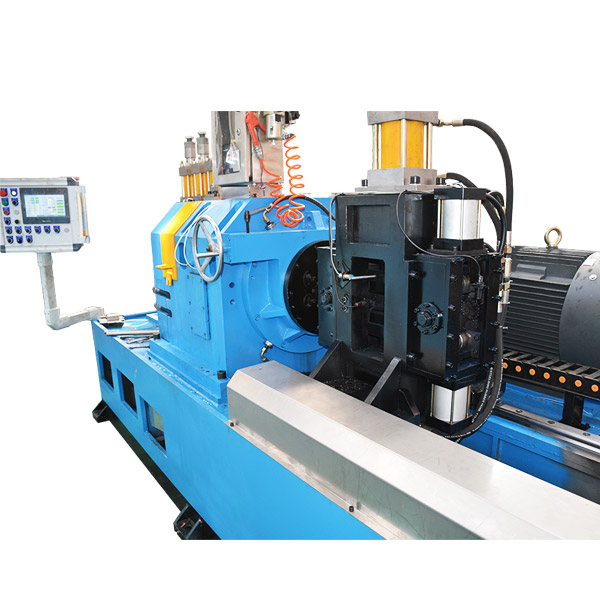

The equipment is composed of two general members: “host machine and transportation devices”.

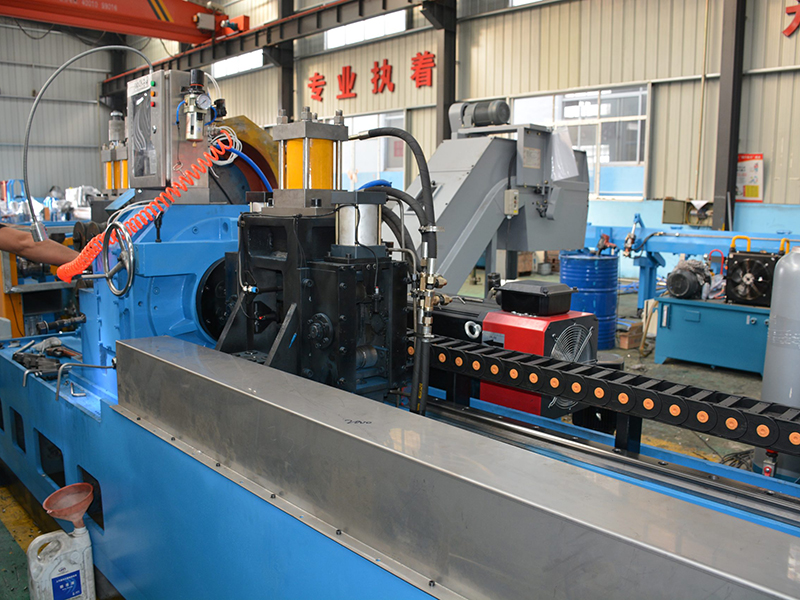

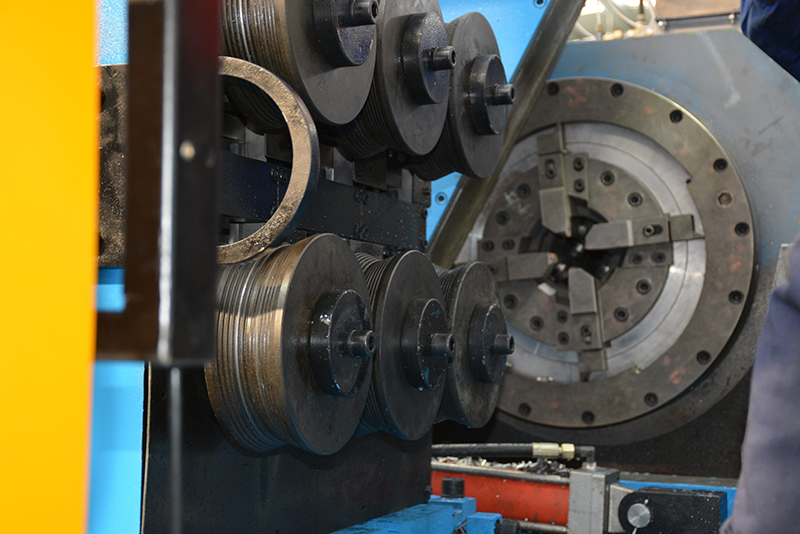

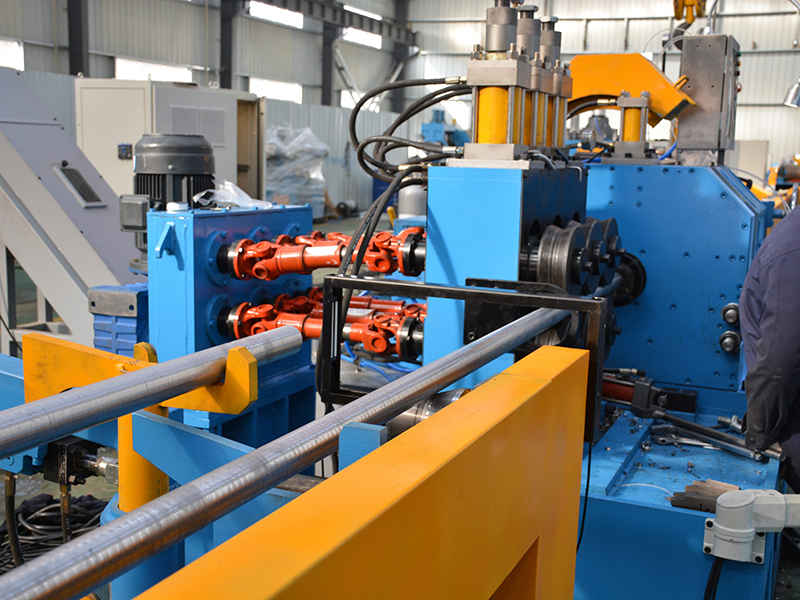

1. Host machine: host machine consists of lathe bed, spindle, oil-air lubrication system , front clamping and rear extracting systems, front guide and middle-rear guide etc.

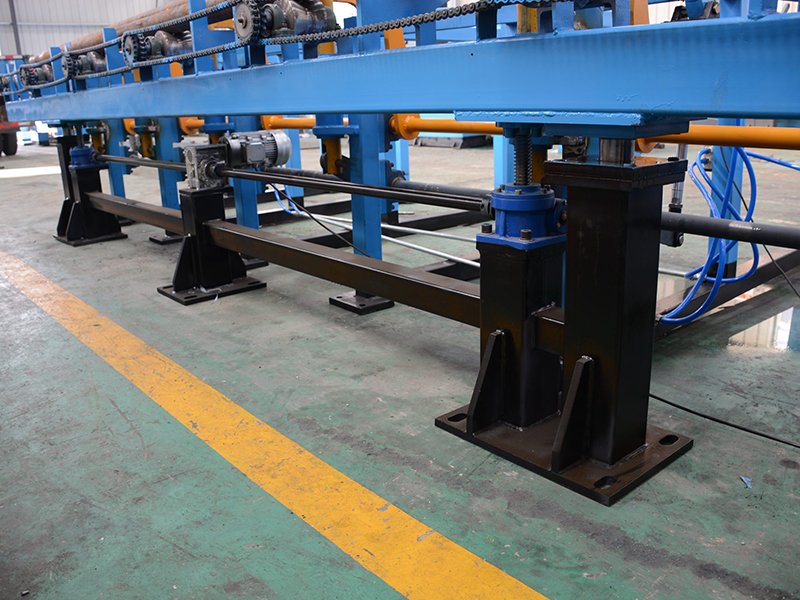

2. Transportation devices: Transportation devices comprises loader and unloader.

3. Oil-air lubrication system: Oil-air lubrication system is specially designed for retaining effective lubricating and cooling in the process of spindle’s high speed rotation. It is comprised of pump, oil air distribution block and gas source processing component.

4. Cutting liquid cooling recycling system: Cutting liquid cooling recycling system is composed of cooling water recycling pump, pipelines, nozzles etc. High pressure water pump transports cooled cutting liquid in water tank to nozzle near the cutter head through pipe. It directly sprays onto cutting blade point and chips, whereby the majority of cutting heat is taken away, and drops to discharging hole underneath the cutter head together with chips, and flows back to water tank through pipe to cool down.

5.Chip-conveyor: Chip-conveyor is an outsourced fine quality product. Chips travel through downfall hole at the bottom of cuter head and drop onto the chain plates of the conveyor and are brought out by transmission ,waiting to be collected.

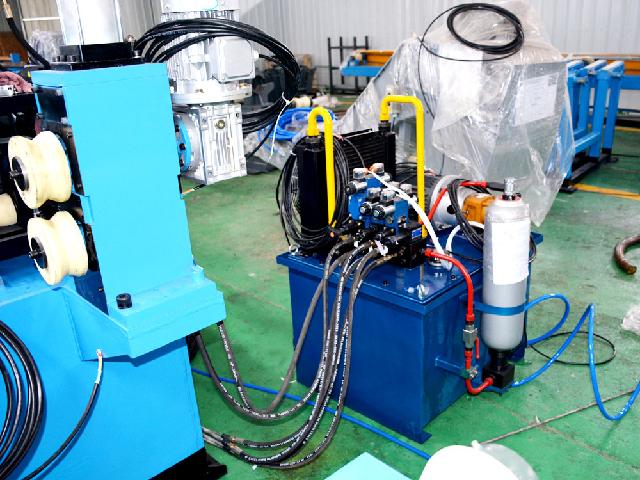

6. Hydraulic pressure system: Hydraulic pressure system consists of pump electric motor, control valve, hydraulic pressure fuel tank, hydraulic pressure pipes and others. It enables to clamp and extract bars through oil cylinder within front (rear) clamping elements.

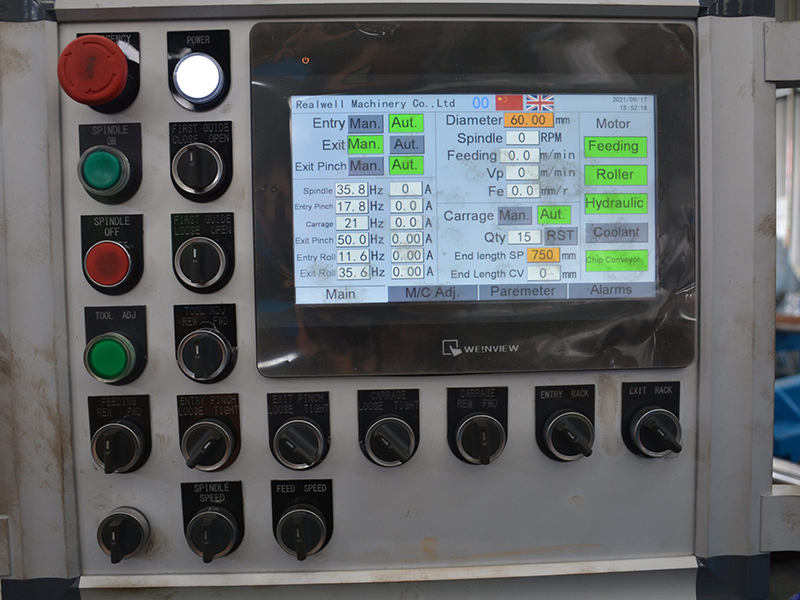

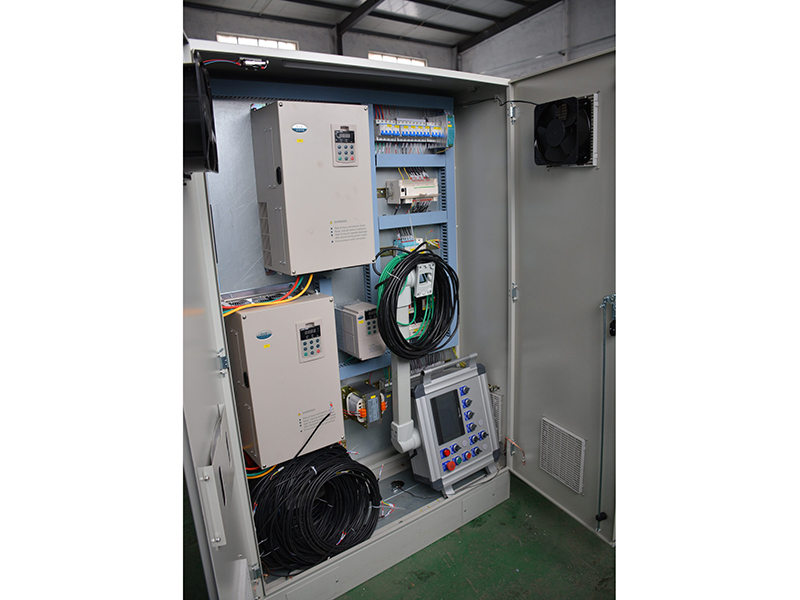

7. Electric machinery system: Electric system includes power supply and controlling system. It is composed of 1 power distributing cabinet and 1 operating button station. It fulfils the function of electric control for main transmission system, front and rear clamping feeding system, cooling system, hydraulic pressure system, chip-conveyor and transportation devices.

Parameter table

Model WXC200CA
Workpiece
Required
Cutting range(mm) Φ85~ Φ210X2800~unlimited
Tensile strength σb(Mpa) ≤1100
Surface hardness ≤HB320
Bend(mm/m) ≤1.50
Diameter tolerance As per GB 702-88 group two
Roundness ≤diameter tolerance 50%
Surface roughness(Ra) ≤25~50mm
Finished Products Diameter range(mm) Φ80~Φ205
Radius cutting depth(mm) 0. 5~5
Diameter tolerance ≤IT10(standard diameter tolerance)
Surface roughness (Ra) ≤3.2μm
Roundness (mm) ≤0.03
Feeding speed (infinitely adjust speed m/min) 0.3~4.0(Slow down for materials with ceaseless chips, high strength and high hardness.)
Cutter head rotating speed (infinitely variable speed) (r/min) 60~400
Main motor power (kW) 132(6 electrodes)
Feeding motor power (kW) 11 (4 electrodes)
Clamping vehicle motor (kW) 7.5 (servo)
Dimensions (m) (reference) Host machine 6.0X5X2.4
Weight (t) (reference) Host machine 22
Total capacity (kW) 210
Source of compressed air (prepared by user) 0.4~0.8MPa, 2m3/min, with second grade oil and water separator
