Equipment function
1-1-1 The equipment is an automatic detection and correction device designed for the bending deformation in the production process. It has the characteristics of high measurement accuracy, easy operation, and can adapt to a variety of workparts.
1-1-2 In the automatic calibration process, the operator only needs to operate the loading and unloading of the workpiece, whose curvature measurement, calibration point positioning, loading calibration, calibration effect inspection and result output are all automatically completed by the calibration machine.
1-1-3 The equipment has the function of maximum calibration amount setting (limit) to protect the workpiece from being broken or cracked by excessive correction.
1-1-4 The equipment has the function of bending digital display and bar diagram intuitive display. The man-machine dialogue interface in Chinese or English is beautiful and fresh, which is convenient for operators to learn and operate.
1-1-5 Industry measurement and control software has self-learning function, which can process the previous correction data for statistics, establish the best correction curve, and automatically call the best correction amount according to different systems of the workpiece bending amount.
1-1-6 After the automatic calibration work cycle is completed, the calibration function automatically determines whether the workpiece meets the tolerance requirements, and gives the indication signal.
1-1-7 The equipment has the manual adjustment function, and the operator can separately operate each action unit of the calibration machine, so as to adjust the mechanical state.
1-1-8 Device parameters can call the corresponding functions according to different permissions.The operator can only replace the type of workpiece.Qualified quantity, correction quantity and other parameters affecting product quality and system safety operation can be changed by the authority of the equipment administrator.
1-1-9 Super large database system, unlimited storage of workpiece parameters, fully meet the user production needs.
1-1-10 Has the indication function of automatically diagnose the fault to facilitate equipment maintenance.
1-1-11 The equipment has the automatic compensation function of pressure head and support wear amount, and will not reduce the production efficiency due to tooling wear.
1-1-12 In the control system, realize strict interlock for each action unit to avoid misoperation and accidents.
1-1-13 Set the damage to the maximum correction protection value, electrical and mechanical limit and interlocking system.
1-1-14 The device has the function of intelligent planning and calibration path: the machine monitors various material data through the neural network, and automatically plans the calibration order and path according to multiple bending points, so as to improve the calibration efficiency.
1-1-15 The equipment has the function of support block type prevention: the support block pressure head is designed with type prevention, which can reduce the damage to the workpiece
1-1-16 The equipment has the function of preventing pressure breaking: for individual workpieces with suddenly high elasticity, the maximum correction amount can be set to prevent workpiece pressure breaking.

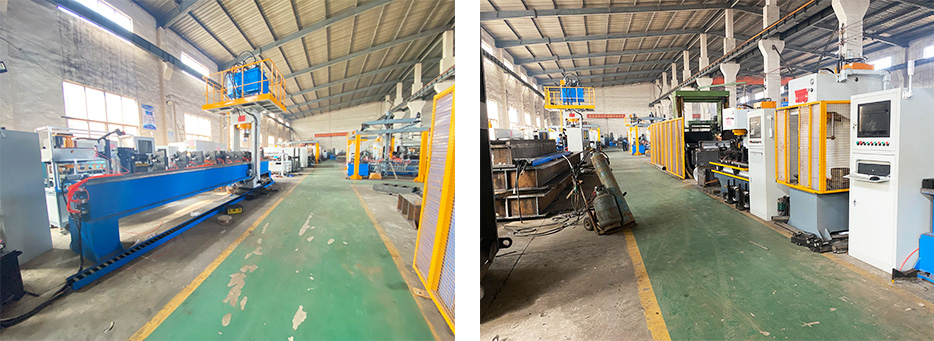

workshop
